MERCEDES UNIMOG U1300L
4X4
DROP SIDE CARGO TRUCK
Units Available for sale: 50 pcs.
EXW UK
Condition: Mileage From: 10,000 - 50,000 kms
Year of Manufacture: 1988
Price: 25 600 GBP each include full service/ New painting the VAT not included

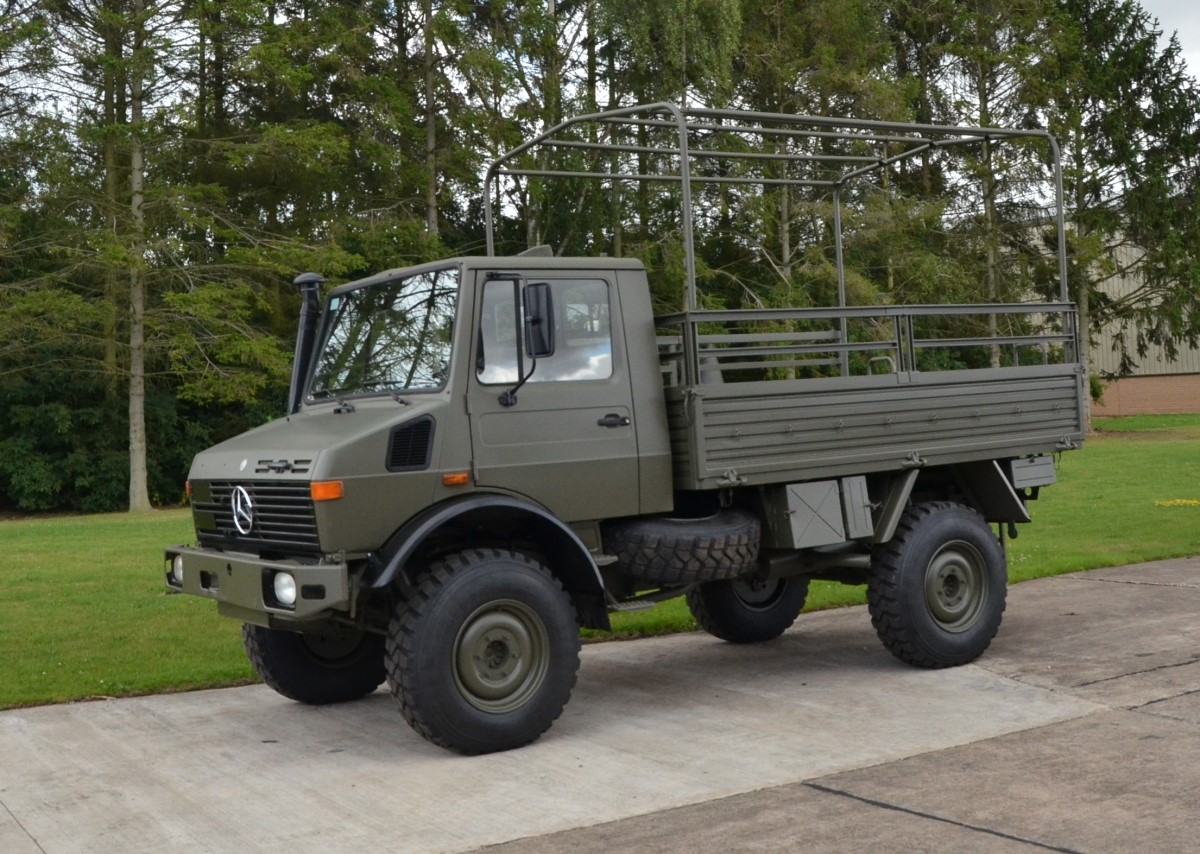

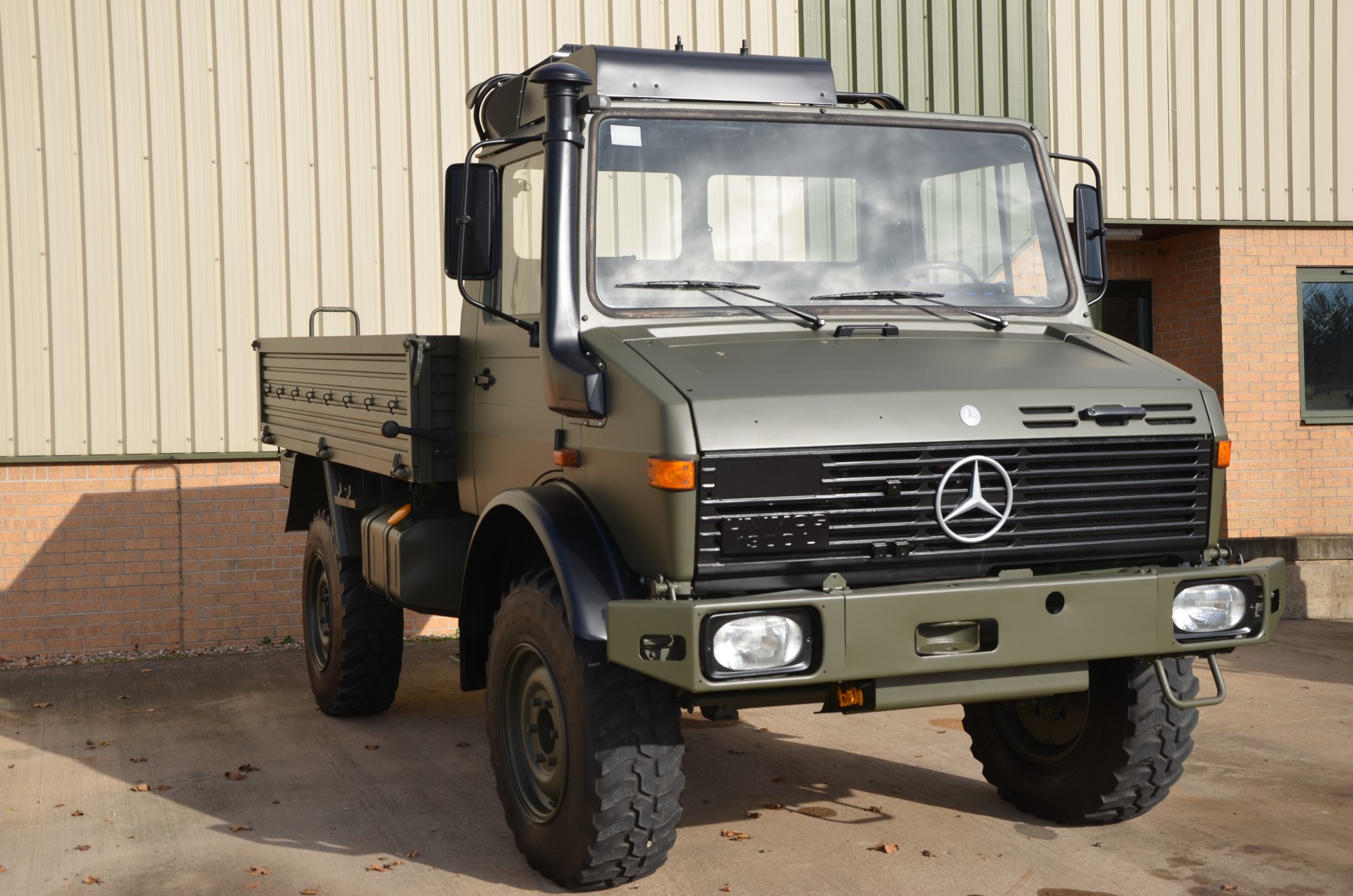

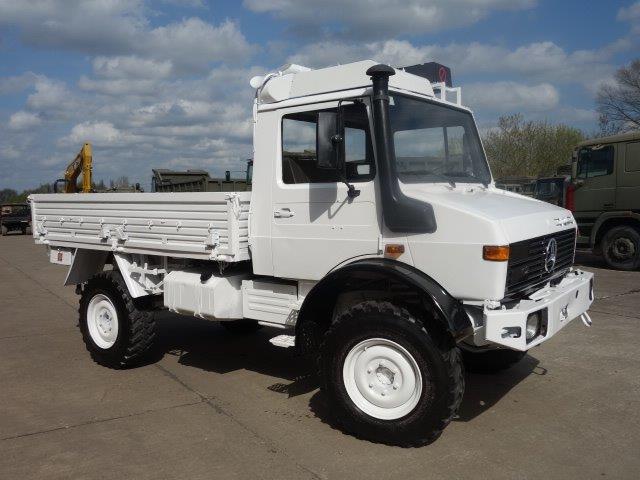

Mercedes Unimog U1300L 4x4 Drop Side Cargo Truck
Unimog this name is synominous with top quality German trucks. These vehicles are classed as a high mobility load carrier capable of traversing any terrain. The design centres around the coil sprung suspension, making them an ideal forestry/off road vehicle.
Drives very well with crisp, free-revving engine & excellent gearbox.
Excellent condition with minimal mileage

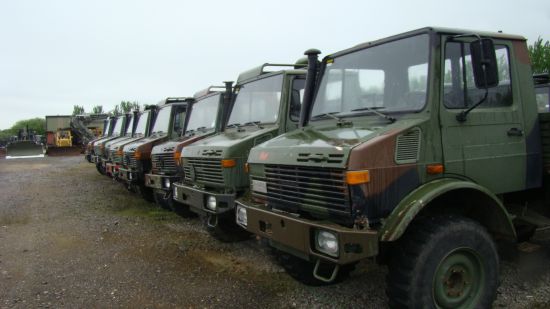

These machines are ex German military and as such they are all in excellent condition. They are not equipped with rear linkage etc..
Not agricultural spec. Ideal basis for expedition camper.
SPECIFICATIONS MERCEDES UNIMOG U1300L 4X4 DROP SIDE CARGO EX MILITARY TRUCK
Unimog U1300L Engine:
OM352 6 cylinder diesel developing 130hp
Top Speed 12.5x20 tires 85 kph 53 mph
Top Speed 14.5x20 tires 90 kph 56 mph
Top Speed 14.5x20 +fast axles 110 kph 68 mph
Fuel consumption U1300 20l - 25l / 100 km (engine Turbo Charged diesel)
Fuel capacity: 160 liter (35 gallons).
Range: 350 km (219 miles).
Mercedes Unimog U1300L Dimensions and Weights:
Width 2300 mm 90.6 inches
Length 5500 mm 216.7 inches
Height at cab 2625 mm 103.4 inches
Height at highest point 2875 mm 113.3 inches
Wheelbase 3250 mm 128 inches
Track 1860 mm 73.3 inches
Turning radius 14.1 meters 46 feet
Approach angle 46 Degrees
Departure Angle 51 Degrees
Ground clearance 440 mm 17.5 inches
Fording depth 1000 mm 3 1/2 feet
Curb Weight 4430 kg 9746 lbs
Gross Weight (GVW) 7490 kg 16,000 lbs
Max-Load 2,250 KG
Tyres 11,0 X 20
Electrical System 24 Volts
Mercedes Unimog U1300L Internal dims ambulance box
L: 2.5 m
W:2.3 m
H:1.85 m
Mercedes Unimog U1300L Transmission:
8 speed synchromesh transmission with 8 speed reverse. Internal transfer case providing rear wheel drive or 4x4. 4x4 shift on the fly.
Auxiliary Transmissions:
Working Group:
5.76:1 reduction for all 8 forward and reverse gears providing from: 488:1 in 1st, to 37.6:1 in 8th
Crawler group: (Working group needed for Crawler group)
55.87 reduction for all 8 forward and reverse gears providing from: 4737:1 in 1st, to 364:1 in 8th
All 8F/4R speeds available in 4wd and 2wd.
Claas Overdrive Gearbox: 22% ratio increase, works in any gear giving a total of 16F/8R.
Portal Hub Axles, 6.53 total axle ratio.
Cruises comfortably at 55 mph, maximum speed 62 mph. 10 mpg.
True "Shift-On-The-Fly" driver controlled front axle engagement/disengagement.
Driver controlled axle locks, both axles.
Mercedes Unimog U1300L Crew:
1 + 2.
Mercedes Unimog U1300L Steering:
Daimler-Benz ball nut hydraulic power steering.
Mercedes Unimog U1300L Brakes:
Hydraulic dual circuit brake system, disk brake, compressed air actuated. Automatic load compensation. Available exhaust brake and trailer brakes.
If you are interested in buying this stock offer or you have any questions feel free to contact us.
